CAT-3-ACH Rewinder 6" Max Label Width 12" Max Roll Diameter 1" - 4" Core Diameter
CAT-3SA-STANDARD Rewinder 6.5" Max Label Width 12" Max Roll Diameter 1" - 4" Core Diameter
CAT-3SA-STANDARD Rewinder 6" Max Label Width 12" Max Roll Diameter 3" Core Diameter, 80-203-0033
> Max. Roll Diameter: 12" (305mm)
> Core Diameter: 3" (76mm)
> Core Holder: Fin-Style
> Max. Media Width: 6.5" (165mm)
> Full 5-Year Parts and Labor Limited Warranty

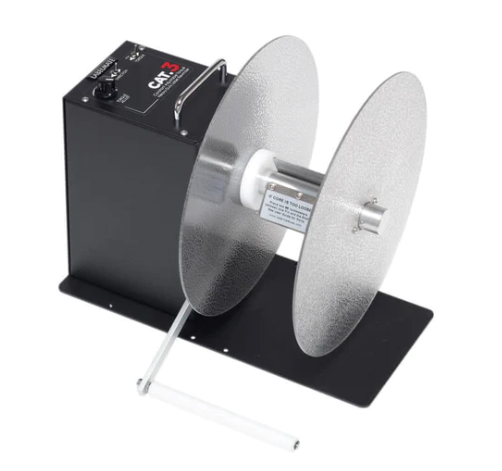

CAT-3 Rewinders with a Sensor Arm are the ideal solution for rewinding from a printer. These universal rewinders provide a "set it and forget it" solution that starts and stops automatically with the printer. Additionally, these Rewinders are equipped with full speed and torque control, are bi-directional, and are virtually silent in operation.
These Rewinders start and stop automatically with the printer through use of a special Sensor Arm that tracks the labels.
KEY FEATURES
Sensor Arm automatically starts and stops the Rewinder w/ the Printer
Constant Adjustable Torque (CAT)
Silent in operation
Adjustable speed control
Includes 2 Guide Flanges
Max. Speed: 120 in/sec (3,048-mm)
Max. Roll Weight: 20 lbs. (9-kg)
Weight: 29 - 33 lbs. (13 - 15-kg)depending on model
Bi-directional rewind capability (switch-selectable)
Full 5-Year Parts & Labor Limited Warranty
