CAT-3SA-CHUCK-10 REWINDER 80-203-0029

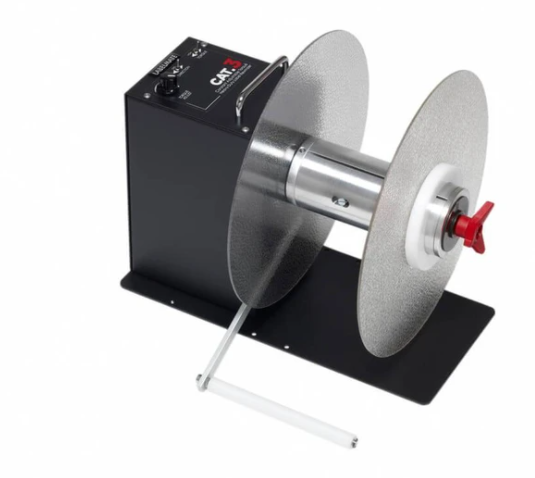

CAT-3SA-CHUCK-10 Rewinder 10.5" Max Label Width 12" Max Roll Diameter 3" Core Diameter (Mechanical Chuck)
CAT-3SA-CHUCK-10 Rewinder 10.5" Max Label Width 12" Max Roll Diameter 3" Core Diameter, 80-203-0029, Epson ColorWorks Rewinder, VIPColor Label Rewinder
These Rewinders start and stop automatically with the printer through use of a special Sensor Arm that tracks the labels.
KEY FEATURES
Sensor Arm automatically starts and stops the Rewinder w/ the Printer
Constant Adjustable Torque (CAT)
Silent in operation
Adjustable speed control
Includes 2 Guide Flanges
Max. Speed: 120 in/sec (3,048-mm)
Max. Roll Weight: 20 lbs. (9-kg)
Weight: 29 - 33 lbs. (13 - 15-kg)depending on model
Bi-directional rewind capability (switch-selectable)
Full 5-Year Parts & Labor Limited Warranty
CAT-3SA-CHUCK Rewinders for Epson ColorWorks
The CAT-3SA-CHUCK Rewinder Series is ideal for use in-line with a printer. CAT-3SA-CHUCK Rewinders feature a special Sensor Arm (also known as a Dancer Arm) that tracks the labels coming from the printer and automatically mirrors the start/stop action of the printer to prevent excessive tension on the label web.
